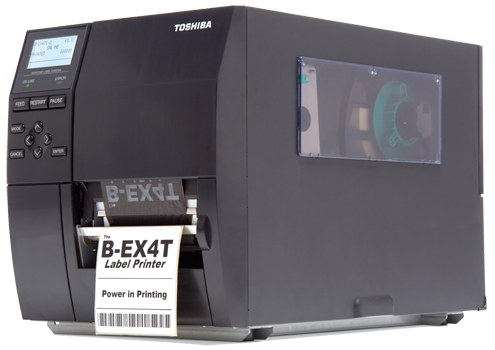

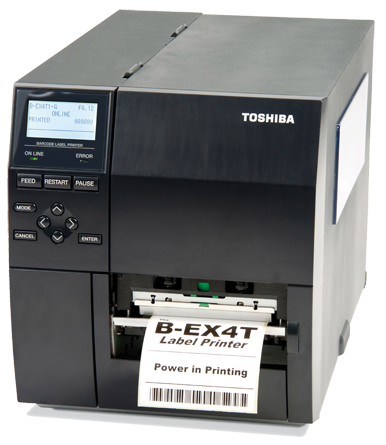

B-EX4T1-TS12-QM-R "Thermal/Thermal Transfer Label Printer"
Product Number:
P0000EX4T10000
Quantity:
- +
Price:
$ 0NTD / Station
Inventory:
Shipping Fee:
  • Purchase on the main island over 5,000 NT dollars: Free shipping.
  • For purchases under 5,000 NT dollars on the main island: Shipping fee of 120 NT dollars.
  • Additional charges apply for remote areas, offshore islands, and international shipping.
Warranty:
  • The barcode printer comes with a 12-month warranty from the date of shipment (excluding the printhead).
  • The printhead has a warranty of 3 months or 30 kilometers, whichever comes first, from the date of shipment.
Products:
  • Resolution: 305 dpi
  • Printing Width: 104 mm
  • Printing Speed: Up to 355 mm per second
  • Printhead: Slanted (High-Speed)
  • Communication Interfaces: Built-in Ethernet, USB 2.0
  • Media Alignment: Centered

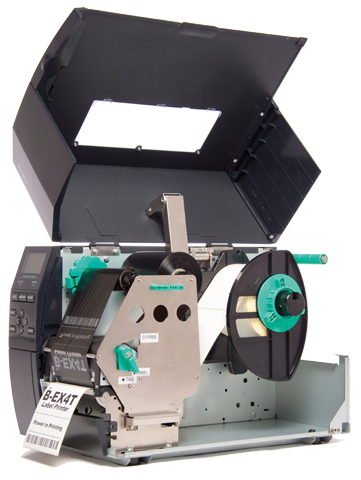

  • Ribbon Replacement Method: Push-in
  • Exterior Structure: Metal casing with a transparent window design
  • Applicability: The sleek and aesthetically pleasing casing design is suitable for various office environments and harsh conditions, providing high-speed printing performance.
Specifications
  • "The B-EX series combines the proven features and functions of the B-SX series with enhanced capabilities to improve performance and operability."
  • "The angled printhead design allows for high-speed printing, with a maximum speed of up to 355 mm per second, making it suitable for box labels and high-volume printing needs, thereby increasing productivity."
  • "Built-in ribbon saver function helps reduce consumable costs."
  • "Simple parts replacement mode allows for component replacement without the need for special tools."

Specifications:

  • Printing Modes: Both Thermal Transfer and Direct Thermal
  • Resolution: 305 dpi
  • Printing Width: 104 mm
  • Printing Speed: Up to 355 mm per second
  • Printing Length: 8 mm to 453.2 mm
  • Maximum Paper Width: 120 mm
  • Exterior Structure: Metal casing with a transparent window design
  • Dimensions: 278 mm W x 460 mm D x 310 mm H
  • Weight: 19 kg
Operating environment
  • Communication Interfaces: Built-in Ethernet, USB 2.0
  • Software: BarTender Ultralite, compatible with Windows 7 and later versions. Upgrade options available to Basic/Professional or higher-level software (sold separately).
  • Driver Support: Windows Drivers for 2000/XP/7 and above
  • Operating Temperature: +5°C to +40°C, Relative Humidity: 25% to 85%
  • Electrical Specifications: 100V to 240V, 50/60Hz automatic switching power source
  • Safety Certifications: CE, UL
  • Country of Manufacture: Indonesia
Paper/Printer Ribbon Specifications
  • Paper Types: Continuous paper, gap paper, black mark paper, fanfold paper (external roll)
  • Paper Width: Up to 120 mm
  • Maximum Paper Roll Capacity (Outer Diameter): 200 mm
  • Paper Roll Core Diameter: 76 mm
  • Label Gap: 3 mm
  • Ribbon Core Size: 25.4 mm
  • Ribbon Length: 300 to 600 meters
  • Label Thickness: 0.06 mm to 0.19 mm
  • Black Mark Height: 2.0 mm to 10 mm
  • Minimum Label Height: 13 mm
  • Ribbon Specification: External Roll
  • Label Packaging: Inner Roll
  • Maximum Ribbon Width: 33.8 mm to 110 mm
Font/Graphic/Barcode Specifications
  • "Through software control, it can support seven types of vector fonts, including WINDOWS fonts and fonts like '華康.'"
  • "It can support JPG and BMP black and white attribute image formats, including customer logos."
  • "Text, barcodes, and graphics can be oriented in four directions (0 degrees, 90 degrees, 180 degrees, and 270 degrees) and can be freely scaled, resized, and rotated."
  • "The software supports all one-dimensional and two-dimensional barcodes (For information on supported barcode types, please refer to the BarTender documentation)."
Applicable Industries
  • Manufacturing Industry
  • Automotive Industry
  • Chemical Industry
  • Pharmaceutical Industry
  • Textile Industry
  • Electronics Industry
  • Telecommunications
  • Food Sector
  • Retail Distribution
  • Transportation and Logistics
  • Healthcare
  • Utilities
  • Government Applications
  • And more.
Accessories
  • *Cutter
  • *Peeling Module
  • *Internal Rewinder
