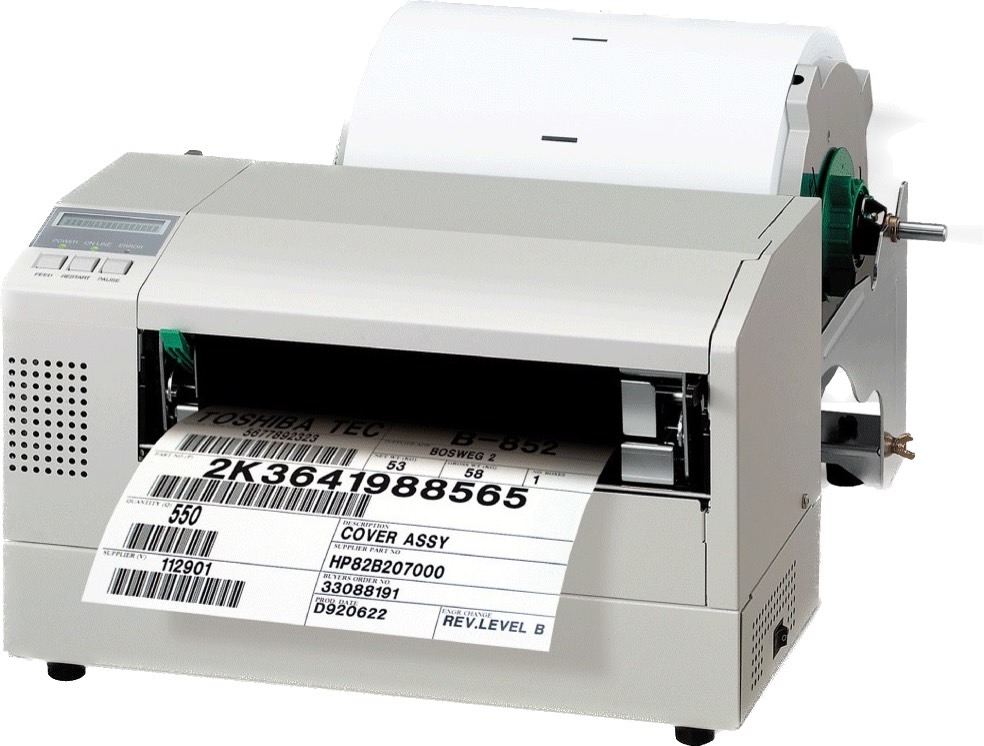

B-852-TS22-QQ-R "Wide-Format Thermal/Thermal Transfer Label Printer."
Product Number:
P0000B85200001
Quantity:
- +
Price:
$ 0NTD / Station
Inventory:
Shipping Fee:
  • Purchase on the main island over 5,000 NT dollars: Free shipping.
  • For purchases under 5,000 NT dollars on the main island: Shipping fee of 120 NT dollars.
  • Additional charges apply for remote areas, offshore islands, and international shipping.
Warranty:
  • Starting from the date of shipment from our company (inclusive), the barcode printer has a 12-month warranty (excluding the printhead).
  • Printhead warranty is for 3 months or 30 kilometers, whichever comes first.
Products:
  • Resolution: 305dpi
  • Printing width: 216.8mm
  • Printing speed: up to 101.4mm per second
  • Print head: Flat pressure type
  • Transmission interface: Built-in Ethernet, USB 2.0
  • Paper alignment: Centered
  • Ribbon replacement method: Push-in
  • Exterior structure: Metal casing with a transparent window design
  • Applicability: The wide 216mm print head is suitable for quickly printing large-format labels.
Specifications
  • "Utilizing groundbreaking CPU technology from TOSHIBA, the B-852 offers high-speed printing and a wide range of enhanced processing interfaces, including USB 2.0 and internal LAN."
  • "Industrial barcode label printers are suitable for compliance labels, brand labels, inventory control labels, environmental warning symbols, slogans, and wide-format label printing. Its design philosophy is 'simple, stable, easy to operate, and cost-effective'."

And here are the specifications in English:

  • Printing Mode: Thermal Transfer/Thermal Direct Dual-Mode
  • Resolution: 300 dpi
  • Printing Width: 216.8 mm
  • Printing Speed: Up to 101.4 mm per second
  • Printing Length: Up to 640 mm
  • Maximum Media Width: 220 mm
  • Exterior Structure: Metal casing with a transparent window design
  • Dimensions: 385 mm (Width) x 181 mm (Depth) x 243 mm (Height)
  • Weight: 15.6 Kg
Operating environment
  • Communication Interfaces: Built-in Ethernet, USB 2.0
  • Software: Compatible with BarTender Ultralite latest version, upgradable to Basic/Professional or higher-level software (available separately)
  • Dynamic Link Files: Windows Drivers for 2000/XP/7 or later
  • Operating Temperature: +5°C to +40°C, Relative Humidity: 25% to 85%
  • Electrical Specifications: 100V or 240V, 50/60Hz AC auto-switching power source
  • Safety Certifications: CE, UL
  • Country of Manufacture: Indonesia
Paper/Printer Ribbon Specifications
  • Paper Types: Continuous paper, gap paper, black mark paper, fanfold paper (external roll)
  • Paper Width: Up to 220mm
  • Maximum Paper Roll Capacity (Outer Diameter): 200mm
  • Paper Roll Core Size: 76mm
  • Label Gap: 3mm
  • Ribbon Core Size: 25.4mm
  • Ribbon Length: 300M
  • Label Thickness: 0.08mm to 0.17mm
  • Black Mark Height: 2.0mm to 10mm
  • Minimum Label Height: 3mm
  • Ribbon Type: External roll
  • Label Packaging: Internal roll
  • Maximum Ribbon Width: 110mm to 220mm
Font/Graphic/Barcode Specifications
  • It can support 7 types of vector fonts, including Windows fonts and Hua Kang fonts, through software control.
  • It supports JPG and BMP black and white image formats, including customer logos.
  • Text, barcodes, and graphics can be provided by the software in four directions: 0 degrees, 90 degrees, 180 degrees, and 270 degrees, allowing for free scaling, resizing, and rotation.
  • The software supports all one-dimensional and two-dimensional barcode types. For more information about supported barcode types,
  • (please refer to the BarTender functionality description.)
Applicable Industries
  • Regulatory labels for logistics and warehousing use.
  • Applications with complex graphic content.
  • Labels for containers, pallets, and containers.
  • Environmental warning signs.
  • Oil drum warning labels.
  • Air conditioning and ventilation system labeling.
  • High-volume printing for industrial users.
  • And more.
Accessories

● Cutter
