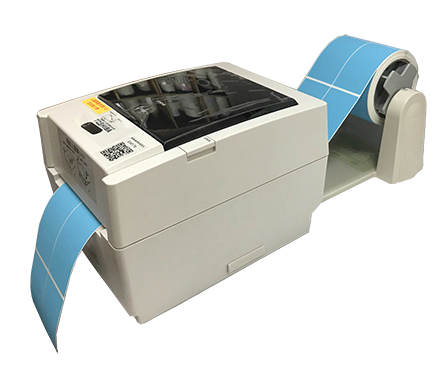

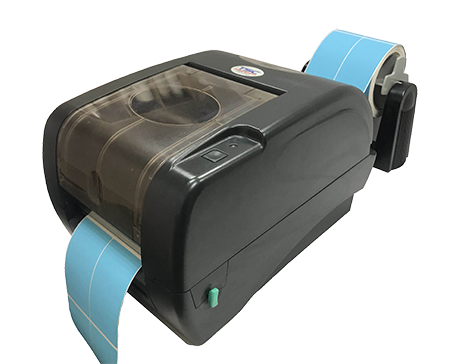

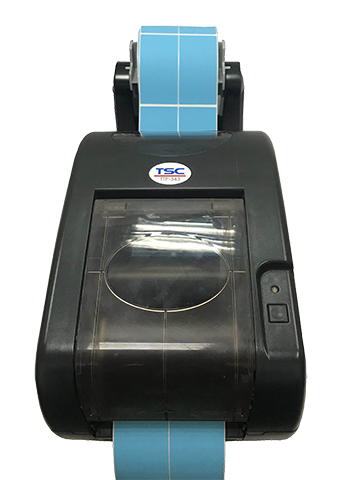

TTP-345IE "Thermal/Thermal Transfer Label Printer"
Product Number:
P0000345000001
Quantity:
- +
Price:
$ 0NTD / Station
Inventory:
5空值
Shipping Fee:
  • Purchase on the main island over 5,000 NT dollars: Free shipping.
  • For purchases under 5,000 NT dollars on the main island: Shipping fee of 120 NT dollars.
  • Additional charges apply for remote areas, offshore islands, and international shipping.
Warranty:
  • Starting from the date of shipment from our company (inclusive), the barcode printer has a 12-month warranty (excluding the printhead).
  • Printhead warranty is for 3 months or 30 kilometers, whichever comes first.
Products:

Resolution: 305dpi Print Width: 106mm Print Speed: up to 127 mm/second Printhead: Flat-type Interface: USB 2.0, RS-232, Parallel Media Alignment: Centered Ribbon Replacement: Cassette-type Structure: Dual-layer ABS plastic, including a transparent window, LED display (orange, red, green) Applicability: Suitable for small-scale printing with limited label variations, ideal for low-volume printing needs.

Specifications
  • ◎ The most economical high-spec computer label printer that delivers high-quality printing results at a low cost. It is compact and space-saving, making it suitable for customers with low-volume printing needs.
  • ◎ The printhead and rubber rollers are designed with modular components, making it easy for users to assemble and maintain. This not only helps maintain excellent printing quality but also effectively extends the machine's lifespan.

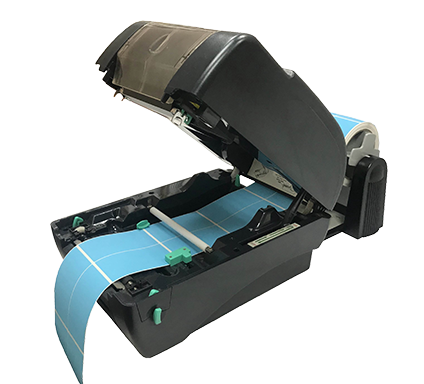

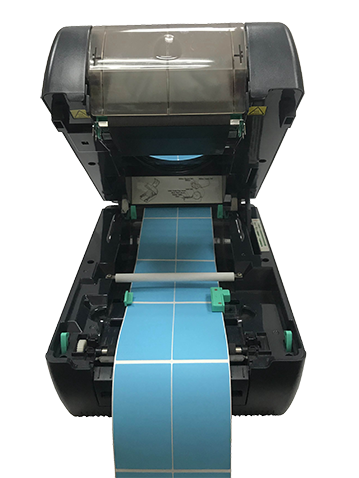

  • ◎ Convenient operation: The top-opening design is lightweight and easy to use, saving operation space.

Specifications:

  • Printing Mode: Dual-mode (Thermal Transfer/Thermal Direct)
  • Resolution: 305dpi
  • Printing Width: 106mm
  • Printing Speed: Up to 127mm per second
  • Printing Length: 10~1016mm
  • Maximum Paper Width: 112mm
  • Exterior Structure: Double-layer ABS plastic with a transparent window, LED display (Orange, Red, Green)
  • Dimensions: 314mm W x 213mm D x 188mm H (excluding optional paper holder)
  • Weight: 2.8 Kg
Operating environment
  •  Communication Interface: USB 2.0 • Serial Port (RS-232) • Parallel Port
  •  Software: Compatible with BarTender Ultralite, which can be upgraded to Basic/Professional or higher versions (purchased separately).
  •  Dynamic Link Files: Windows Drivers for Windows 2000, XP, 7, or later
  •  Operating Temperature: +5°C to +40°C, Relative Humidity: 25% to 85%
  •  Electrical Specifications: External voltage auto-switching power supply • AC Input: AC 100-240V, 2.5A, 50-60Hz • DC Output: DC 24V, 3.75A, 90W
  • Safety Certifications: FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC
  •  Country of Manufacture: Taiwan
Paper/Printer Ribbon Specifications
  •  Paper Types: Continuous paper, gap labels, black mark paper, hang tags, punched paper, folded paper
  •  Paper Width: 20mm to 112mm
  •  Maximum Paper Roll Capacity (Outer Diameter): 168mm (with external paper roll holder)
  •  Paper Roll Core Size: 76mm (with external paper roll holder)
  • Label Gap: 3mm
  •  Ribbon Core Size: 25.4mm
  •  Ribbon Length: 300 meters
  •  Label Thickness: 0.06mm to 0.19mm
  •  Minimum Label Height: 10mm
  •  Ribbon Type: External
  •  Label Packaging: Internal roll
  •  Maximum Ribbon Width: 40mm to 110mm
Font/Graphic/Barcode Specifications
  • Software control supports seven types of vector fonts, including Windows fonts and Hua Kang fonts.
  •  Supports JPG and BMP black and white image formats, including customer logos.
  •  Text, barcodes, and images can be oriented in four directions: 0 degrees, 90 degrees, 180 degrees, and 270 degrees, with the ability to freely resize and rotate them.
  •  The software supports all one-dimensional and two-dimensional barcode types. For more information on supported barcode types, please refer to the BarTender documentation.
Applicable Industries
  • Food industry
  • Cosmetics industry
  • Fashion and apparel industry
  • Libraries
  • Entertainment and ticketing
  • Traditional Chinese medicine industry
  • Electrical industry
  • Electronics industry
  • Warehousing and logistics
  • Transportation and logistics
  • Retail industry
  • Asset management
Accessories

● Cutter Module

● Peeling Module
