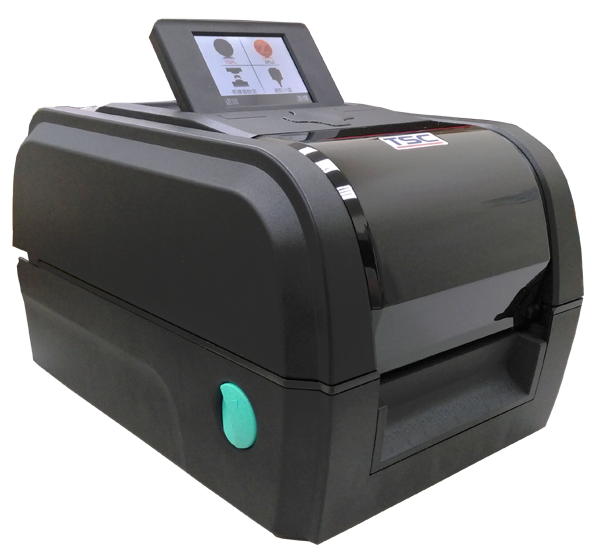

TX-610 "Thermal/Thermal Transfer Label Printer"
Back to label machine home page
Ribbon and Label Sets
Add to Tracking
Product Number：
P0000TX6000001
Quantity：
- +
Price：
$ 0NTD / Station
Inventory：
5空值
Shipping Fee：
  • Purchase on the main island over 5,000 NT dollars: Free shipping.
  • For purchases under 5,000 NT dollars on the main island: Shipping fee of 120 NT dollars.
  • Additional charges apply for remote areas, offshore islands, and international shipping.
Warranty：
  • Starting from the date of shipment from our company (inclusive), the barcode printer has a 12-month warranty (excluding the printhead).
  • Printhead warranty is for 3 months or 30 kilometers, whichever comes first.
Products：
  • Resolution: 600dpi
  • Printing Width: 106mm
  • Printing Speed: Approximately 102mm per second
  • Printhead: Flat-pressure type
  • Interface: USB 2.0, RS-232 serial port, built-in Ethernet print server, USB Host
  • Paper Alignment: Centered
  • Ribbon Replacement Method: Cartridge type
  • Exterior Structure: Shell-type top opening design, double-layered casing, 3.5-inch color screen
  • Applicability: Suitable for high-resolution product labels, intricate jewelry electronic product labels, and graphic labels with high-resolution printing requirements, such as 2D barcodes, icons, small text, or other ultra-high-resolution graphic labels.

This label printer offers high-quality printing and is particularly suitable for applications that require fine details and high resolution, such as jewelry, electronic products, and high-resolution graphic labels. It also provides multiple communication interface options to meet different needs, including USB, Ethernet, and serial port.

Specifications
  • Shell-type top lifting mechanism design, double-layer shell
  • Large memory capacity: 128 MB Flash, 128 MB SDRAM, equipped with a microSD card slot
  • Serial port
  • Built-in Ethernet print server, USB 2.0, USB host standard communication interface. Can be operated as a standalone unit.
  • The print head and rubber roller are designed in a modular fashion, making user disassembly and maintenance easy and simple. This not only helps maintain good print quality but also effectively extends the machine's service life.
  • Convenient operation: The top-opening design is lightweight and convenient to use, saving operation space. Equipped with a 3.5-inch color screen, the machine's status is clear at a glance.

Specifications:

  • Printing mode: Thermal transfer/thermal direct dual-use
  • Resolution: 600dpi
  • Printing width: 106mm
  • Printing speed: up to 102mm per second
  • Printing length: 3 ~ 2,540mm
  • Maximum paper width: 112mm
  • Exterior structure: Shell-type top lifting mechanism design, double-layer shell, 3.5-inch color screen
  • Dimensions: 226mm W x 200mm D x 332mm H (excluding optional paper holder)
  • Weight: 4.08 Kg
Operating environment
  • Communication interfaces: USB 2.0, Serial port (RS-232), built-in Ethernet print server, USB Host
  • Software: Compatible with Windows 7 and above, and can be upgraded to Basic/Professional or higher-level software (purchased separately).
  • Dynamic link files: Windows Drivers compatible with Windows 2000/XP/7 or later.
  • Operating temperature: +5°C to +40°C, relative humidity: 25% to 85%.
  • Electrical specifications: External voltage automatic switching power supply, AC input: AC 110-240V, 2.5A, 50-60Hz, DC output: DC 24V, 5.41A, 130W.
  • Safety certifications: FCC Class B, CE Class B, RCM, UL, cUL, TÜV/Safety, CCC, BIS, EAC, ENERGY STAR®.
  • Country of manufacture: Taiwan.
Paper/Printer Ribbon Specifications
  • Paper types: Continuous paper, gap labels, black-mark labels, hang tags, punched paper, folded paper.
  • Paper width: 19 to 112mm.
  • Maximum paper roll capacity (outer diameter): 127mm (5") standard, 168mm (with external paper roll holder).
  • Paper roll core size: 76mm (with external paper roll holder).
  • Label gap: 3mm.
  • Ribbon core size: 25.4mm.
  • Ribbon length: 300 meters.
  • Label thickness: 0.055mm to 0.254mm.
  • Minimum label height: 3mm.
  • Ribbon specification: Outside wound.
  • Label packaging: Inner wound.
  • Maximum ribbon width: 40mm to 110mm.
Font/Graphic/Barcode Specifications
  • Can support 7 types of vector fonts, including Windows fonts and Hua Kang fonts, through software control.
  • Supports JPG, BMP black and white image formats, including customer logos.
  • Text, barcodes, and graphics can be provided by the software in four directions: 0 degrees, 90 degrees, 180 degrees, and 270 degrees, allowing for free scaling, shrinking, and rotation.
  • The software supports all one-dimensional and two-dimensional barcodes. For more details about the supported barcode types, please refer to the BarTender function description.
Applicable Industries
  • Food
  • Cosmetics
  • Automotive and motorcycle parts industry
  • Clothing and fashion
  • Libraries
  • Entertainment and ticketing
  • Traditional Chinese medicine industry
  • Electrical engineering
  • Electronics industry
  • Warehousing and logistics
  • Transportation and logistics
  • Retail
  • Asset management
  • And more.
Accessories
  • Cutter
  • Barcode scanner
  • External keyboard
  • Peeler module
